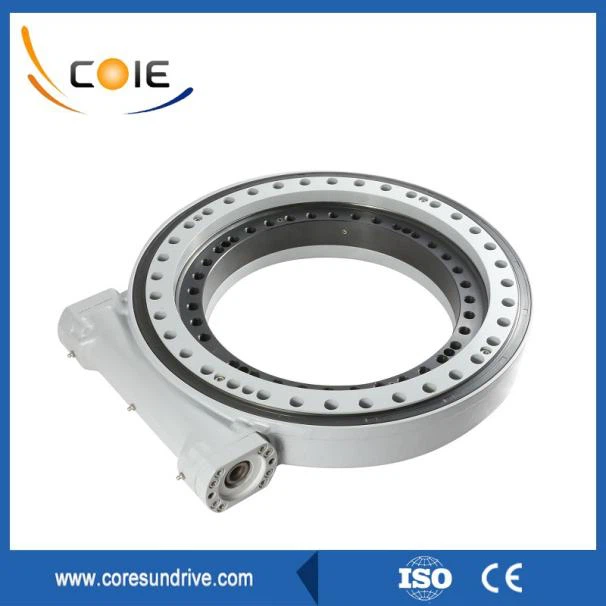

Heavy load cab iav slewing nplhaib bearing
High tuav torque thiab tilting lub sij hawm torque
|
Slewing Bearing Qauv |
SIB 21 |
Hom |
Coresun Tsav |
|
Tuav Torque |
105.8kn wb |
Tilting Moment Torque |
203kn wb |
|
Kev xauv tus kheej |
Yog lawm |
Gear Ratio |
125:1 |
|
Sab nraud Dia. |
5 84mm |
Sab hauv Dia. |
4 65mm |
|
Kev ua tau zoo |
40% |
Tso zis Torque |
15 kNm |
|
Rated Output Ceev |
1.2rpm ua |
Xim |
Grey (RAL7040) |
Slewing Drive Parameter Lub ntsiab lus
1) Tilting Moment Torque: Torque yog cov khoom sib npaug los ntawm kev ncua deb ntawm txoj hauj lwm ntawm kev thauj khoom thiab qhov nruab nrab ntawm slewing bearing. Yog hais tias lub torque tsim los ntawm kev thauj khoom thiab kev ncua deb ntau dua li qhov ntsuas tilting lub sijhawm torque, slewing tsav yuav tig.
2) Radial load: Load ntsug mus rau axis ntawm slewing bearing.
3) Axial load: Load parallel mus rau axis ntawm slewing bearing.
4) Tuav torque: Nws yog qhov rov qab torque. Thaum tus tsav yog tig rov qab, thiab qhov chaw tsis puas.
5) Qhov siab tshaj plaws torque tiav yog hu ua tuav lub zog.
6) Kev ntsuas tus kheej: Tsuas yog thaum thauj khoom, lub slewing tsav tsis tuaj yeem thim rov qab thiab yog li hu ua tus kheej xauv.
Rotary tsav slewing tsav cab iav yog ib qho zoo tshaj plaws ua ke ntawm turbine worm khoom, worm nplhaib nto lub hnab ntawv, nws cov hniav sib cuag cheeb tsam yog loj.
Lub hnab ntim cov kab cab yog siv los tsav cov cab cab thiab cab iav, thiab cov hniav meshes zoo dua
Peb muab slewing tsav slewing iav los ntawm 2 nti mus rau 32 nti raws li kev daws teeb meem
Tsheb mount crane thiab turntable daim ntawv thov ntawm slewing tsav slewing bearing
SC series khoom yog dav siv nyob rau hauv txhua yam thiab hnub ci txheeb ze rotating qhov chaw
